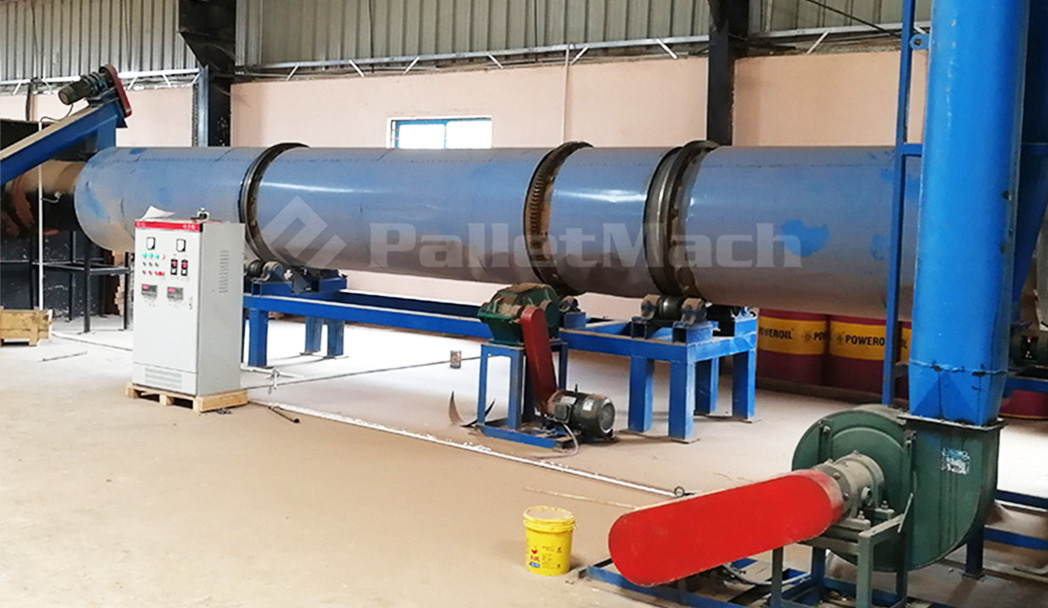

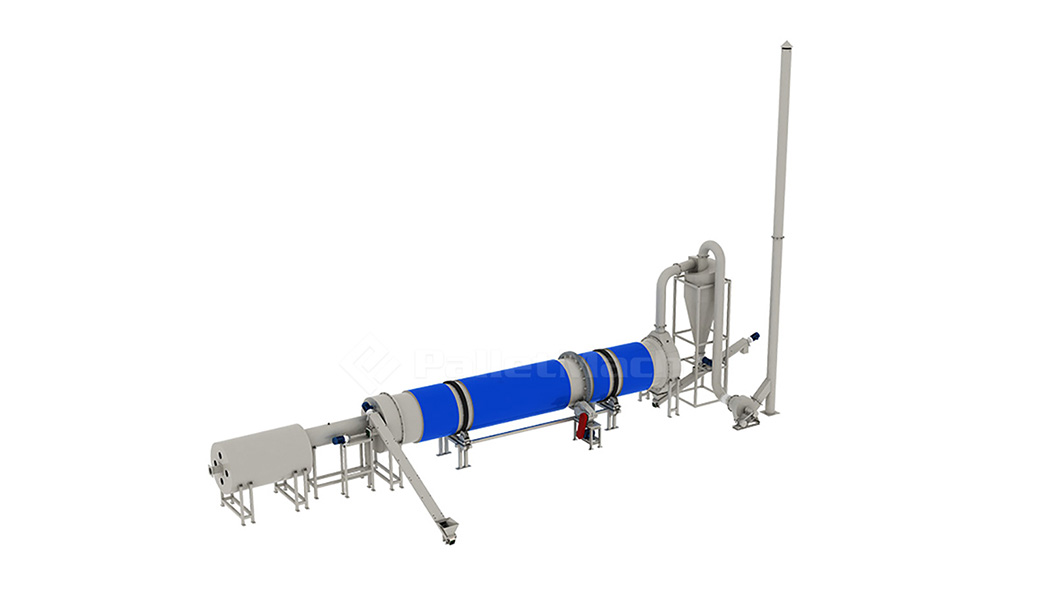

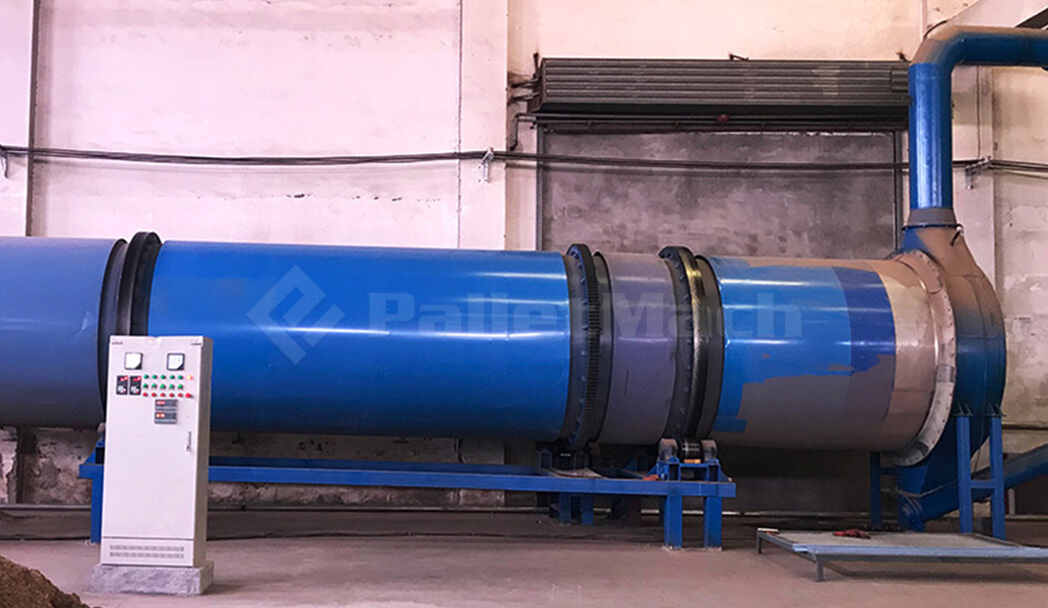

Introduction of rotary drum dryer:
Rotary drum dryer is designed with rotary type, and rotary drum drying machine can remove the moisture of wood materials perfectly. And it could dry the bigger materials such as wood chips, waste wood, wood shavings, sawdust and other kind of crushed straws.
The working temperature of rotary drum dryer machine can reach up to 150℃-180℃ and the water content of wood shavings is below 10% after drying.
Simple design, self-insulation, and improving the heat efficiency to exceed 80%. Meantime, good drying performance, coal consumption < 8kg when drying 1 ton material.
Finished product moisture can be adjusted according to the different requirements. Meanwhile, finished product temperature lower than 60°C, and working continuously.
Rotary drum dryer is suitable for a wide range of materials, such as wood chips, lees, alcohol residue, pomace, dregs, tea residue, bean dregs, sugar residue, potato residue, starch residue, straw, corn cob, leaves, coconut shell, etc. It has a good effect on energy resources, reducing environmental pollution.
|
Rotary Drum Dryer |
||||||||
|
Model |
PMSG1210 |
PMSG1409 |
PMSG1615 |
PMSG2010/3 |
PMSG2210/3 |
PMSG2510/3 |
PMSG2512/3 |
PMSG2912/3 |
|
Daily capacity(t/d) |
44.0-19.5 |
46.5-20.5 |
88.0-39.0 |
144.5-63.5 |
154.0-67.5 |
193.0-83.5 |
227.0-100.0 |
268.0-120.0 |
|
Evaporation of water rate (t/h) |
0.565 |
0.595 |
1.130 |
1.850 |
1.976 |
2.427 |
2.912 |
3.432 |
|
Raw materials humidity (%) |
35-50%(The capacity is different according to different humidity) |
|||||||
|
Dry materials humidity (%) |
12-15% (Adjustable) |
|||||||
|
Dry average temperature (℃) |
235±30℃ |
|||||||
|
Total weight (kg) |
13500 |
15500 |
19500 |
25000 |
27000 |
35000 |
38000 |
43500 |
|
Area (m2) |
5 m*15 m |
5 m*15 m |
6 m*22 m |
8 m*18 m |
8 m*18 m |
10 m* 18 m |
10 m* 20 m |
10 m* 22 m |
